Vice type ED.03 / ES.03 / ET.03

The Europa 03 type is a high precision, modular vice. It has a mechanical-mechanical locking facility, and a covered manoeuvring screw. It can be assembled in three different solutions according to locking requirements:

TYPE ED.03: DOUBLE SELF-LOCKING VICE with facility for closing the two pieces simultaneously, with tolerance up to 2mm.

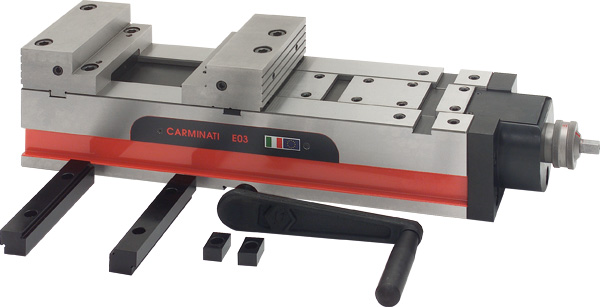

TYPE ES.03: SINGLE VICE WITH THRUST-LOCKING

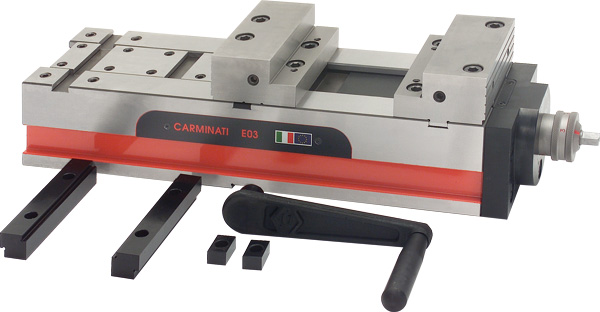

TYPE ET.03: SINGLE VICE WITH PULL-LOCKING.

The covered spindle screw and use of chromium-nickel materials hardened to 58 HRC, assure almost unlimited long-life.

The vice, ground on all surfaces., can be used onplane or squared with a tolerance of +/-0.02. Locking is by a mechanical-mechanical multiplier and a force selector to ensure constant thrust control.

By using the stepped jaws, you can position the piece at three different heights, thus avoiding use of parallels.

LOCKING FORCE
MOD. 100 WITH KG./F 2000
MOD. 125 WITH KG./F 3000
MOD. 150 WITH KG./F 4000

Product Details

  • Client Name : Modular vice type Europa 03 / ED 03 / ES 03
  • Category : Vices
